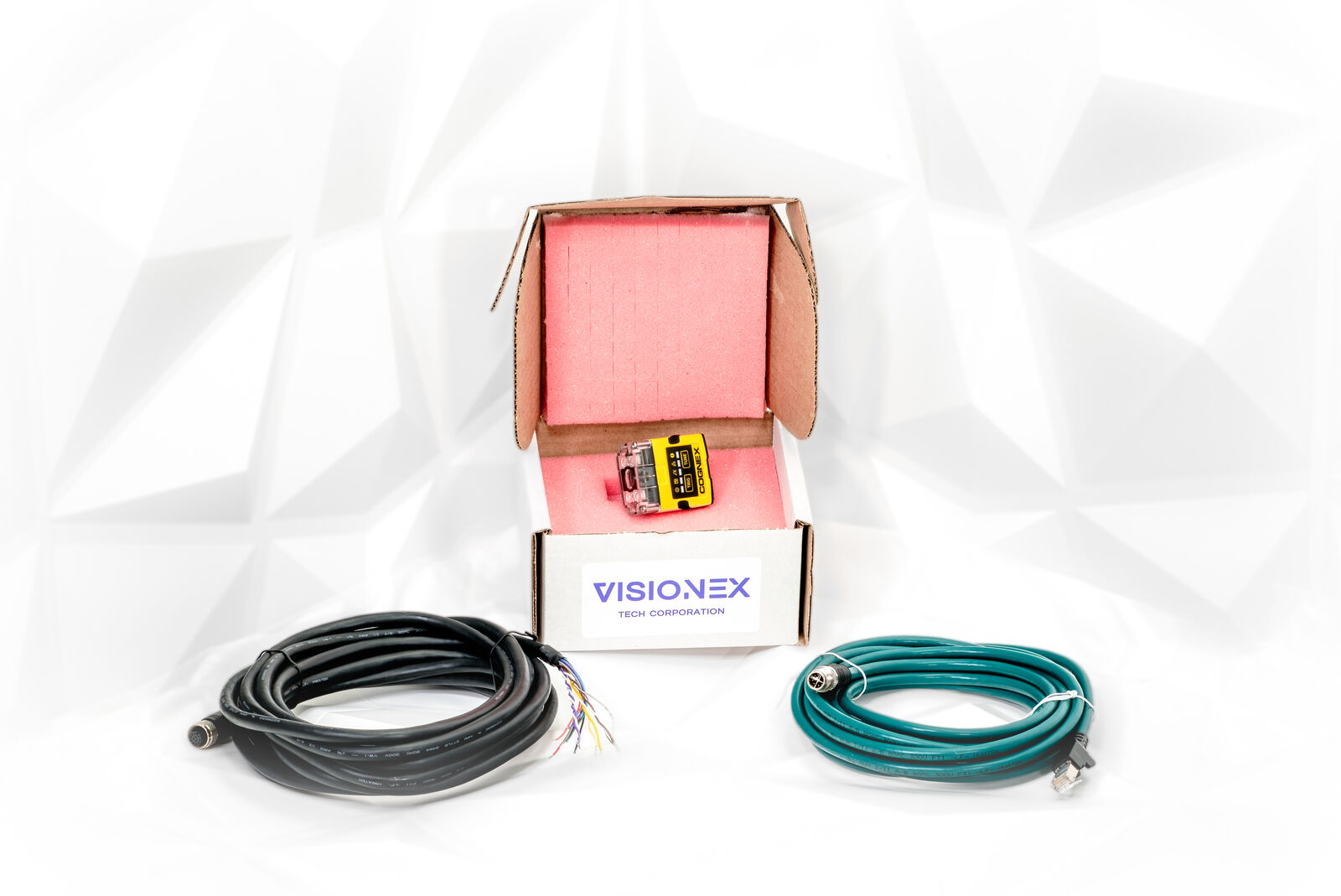

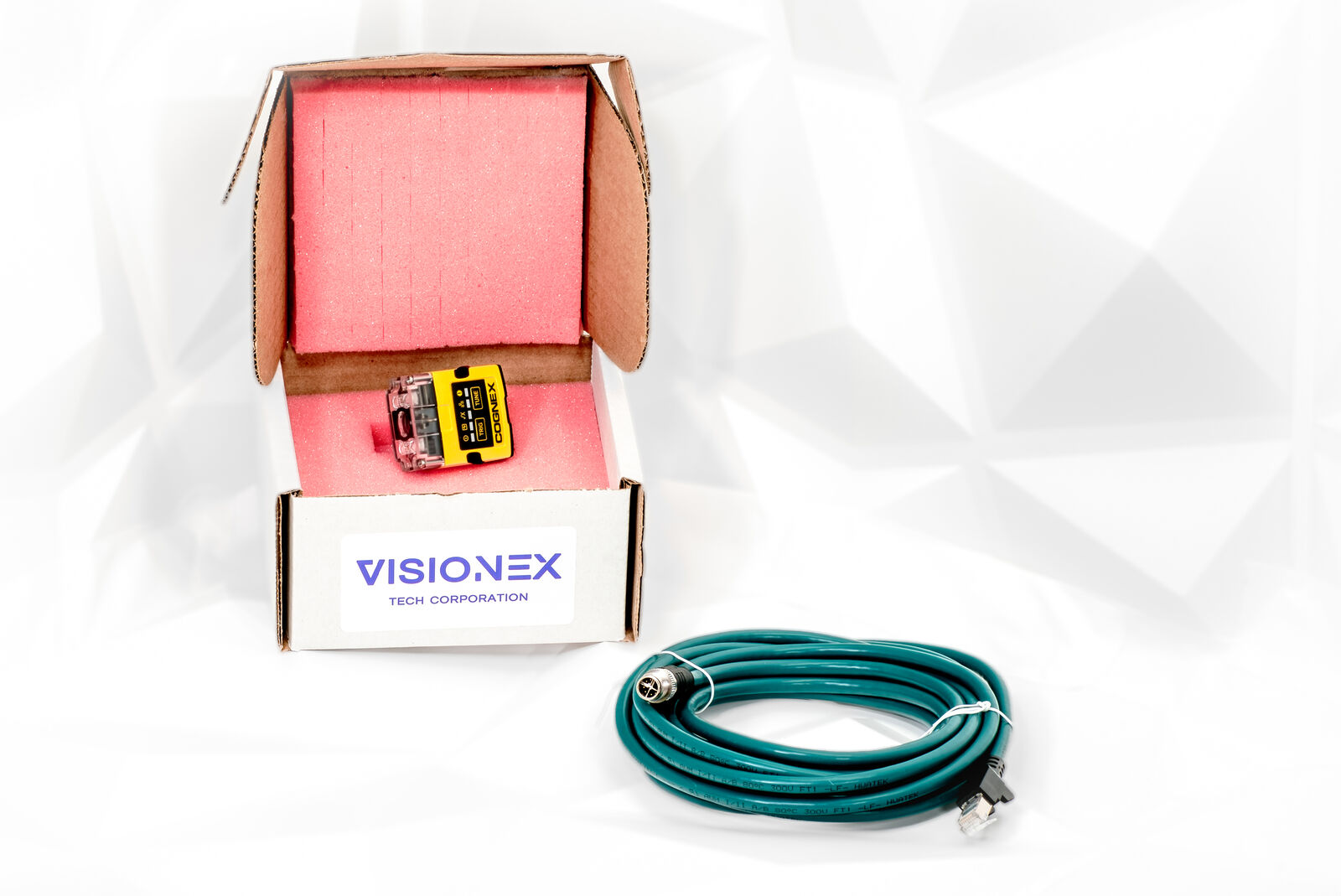

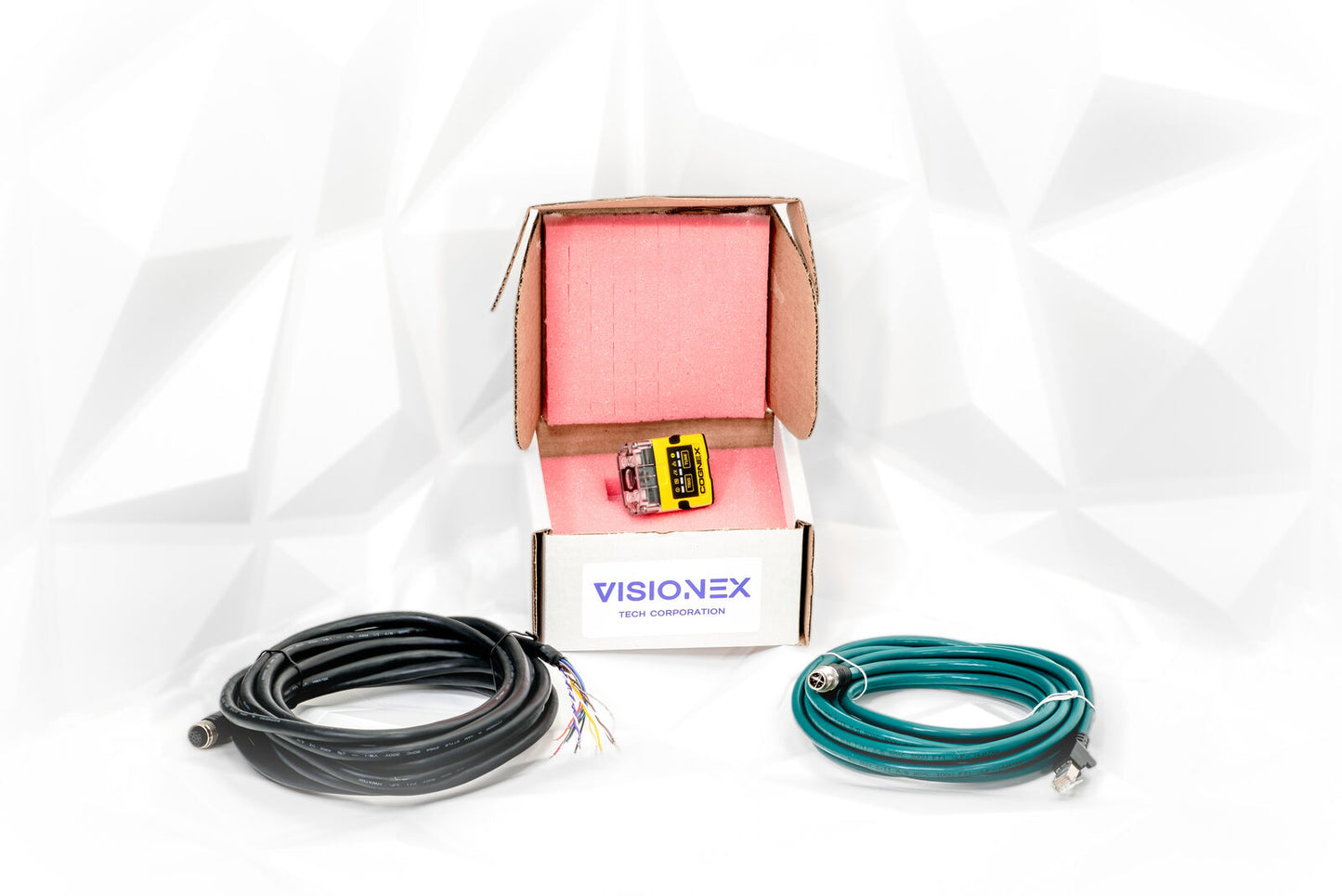

Cognex DM260QL Dataman w/ Cables Barcode Reader *1 yr Warranty* DM260 260QL

About this reader

This barcode reader was installed in a machine vision system briefly and is working perfectly. We've tested it with Cognex software and loaded the latest firmware. It passes all functionality and heat tests to new device standards.

The DM260QL model has the following features enabled:

--1DMax with HotBars II for High Speed 1-D Code Reading, OmniDirectional

--Up to 45 Decodes per Second

--Integrated Red LED with aimer

--3 Position Adjustable 6.2mm Lens

--Ethernet and RS232 Communications

We have other models of the DM260 Series in stock, some aren't listed in our store. Let us know what model, options and accessories we can help you with.

Usually in stock: 260 and 262 with feature sets: S, Q, QL, X

We can help you install and configure after purchase if you like.

Comes with a 1 year warranty from Visionex Tech Corporation.

Option & part numbers

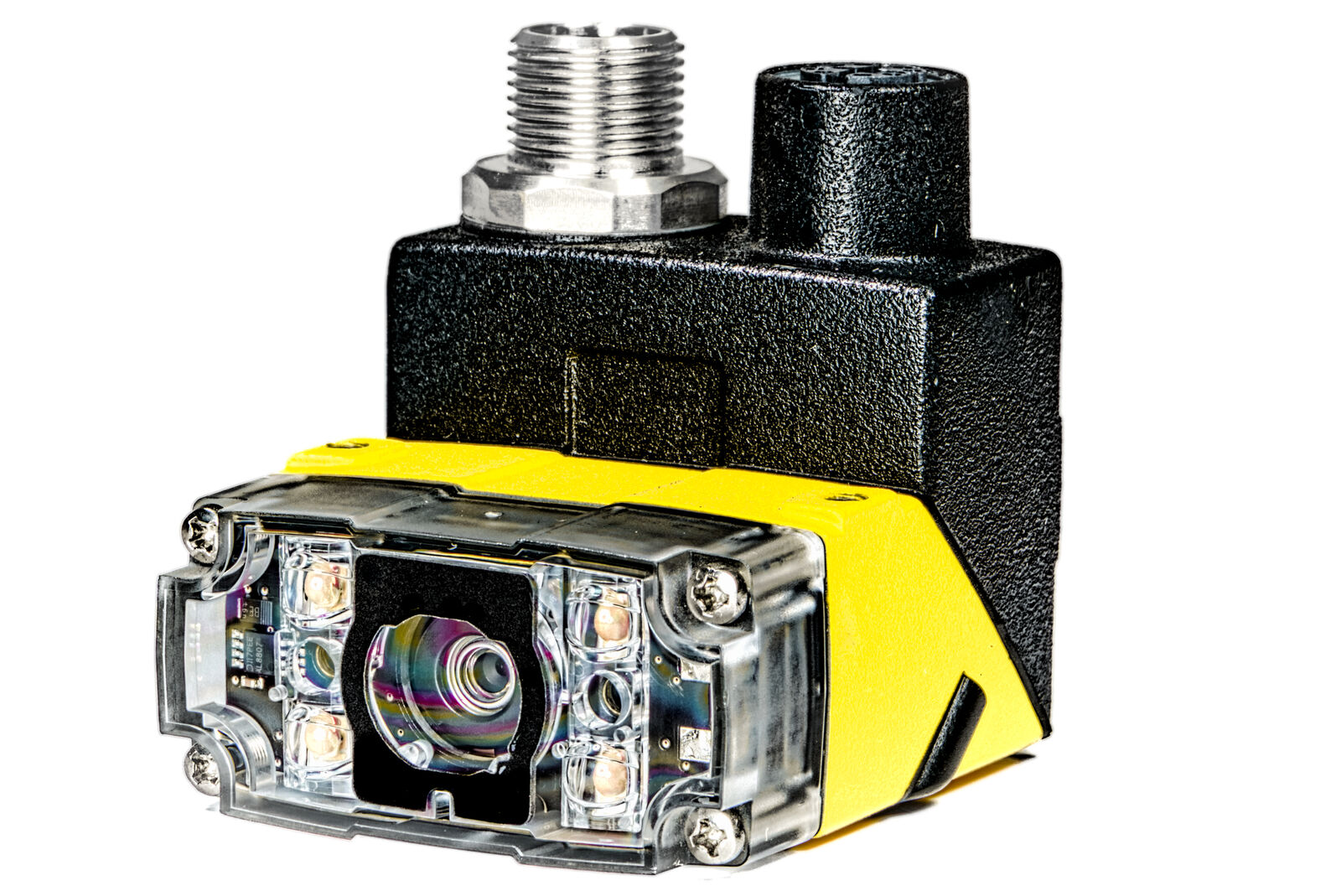

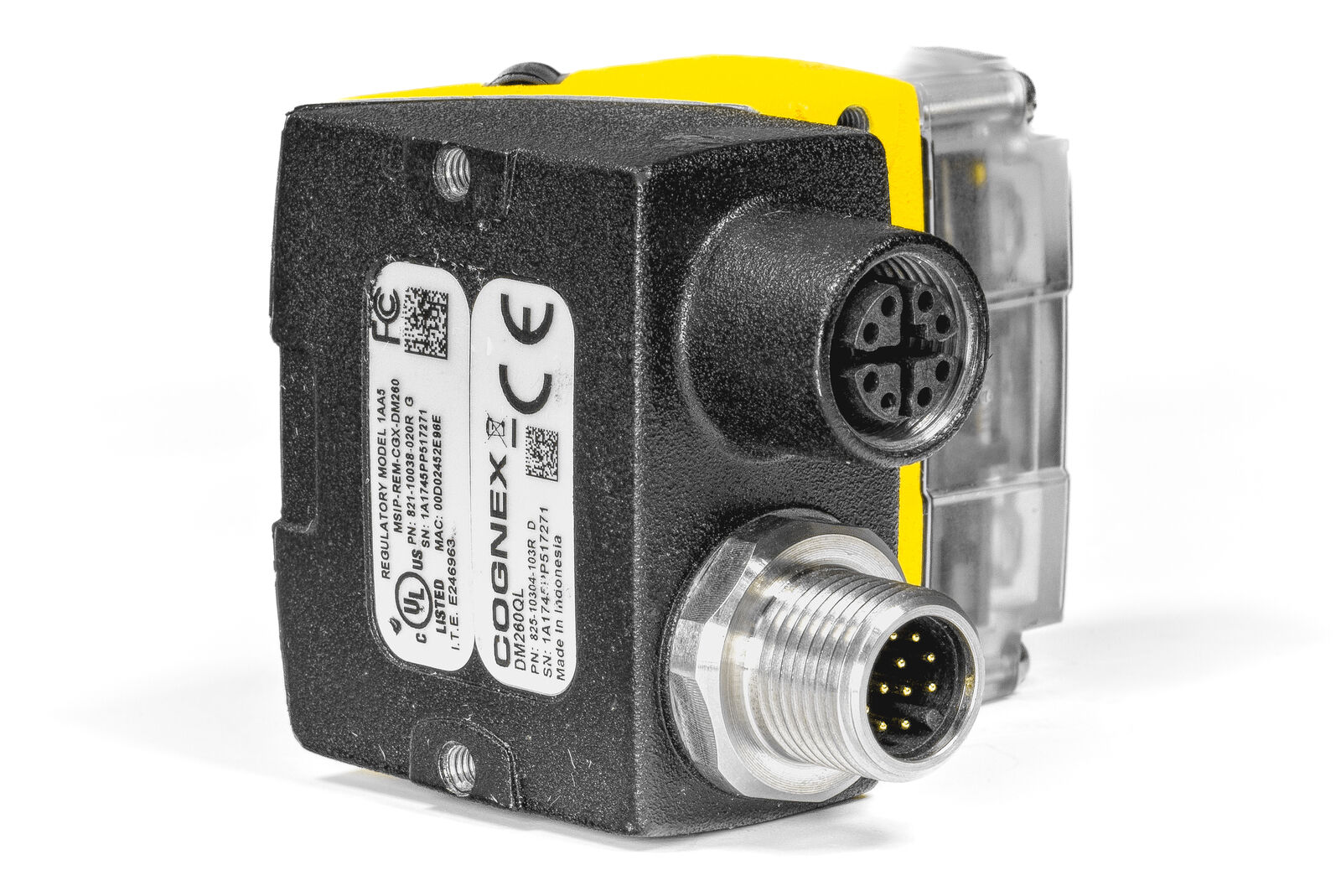

This model has the following part numbers. This listing is for the reader configured as pictured-- with 6.2mm liquid lens, integrated red LEDs (617nm wavelength), powered by 24V I/O cable, in a 90 degree angle (field adjustable)

If you prefer a different configuration we can customize this reader with any configuration or accessories you like.

RDR= Reader  POE= Power over Ethernet  LN= Adjustable focus manual S-mount lens  LL= Liquid Lens (autofocus, adjust with software)  RA= Right Angle (can be changed this to the straight configuration easily with 2 screws) RD= Red HPRL= High Powered Red LEDs
