About this reader
The DM262X is sold by Cognex with many different options of configurations and accessories. This listing is for this reader with 24 volt power, red integrated illumination, and a liquid lens that allows focus to be adjusted automatically and via software. The orientation of the reader can be field modified to be in straight or right angle position.
*Get in touch if you don't see the options you're looking for*

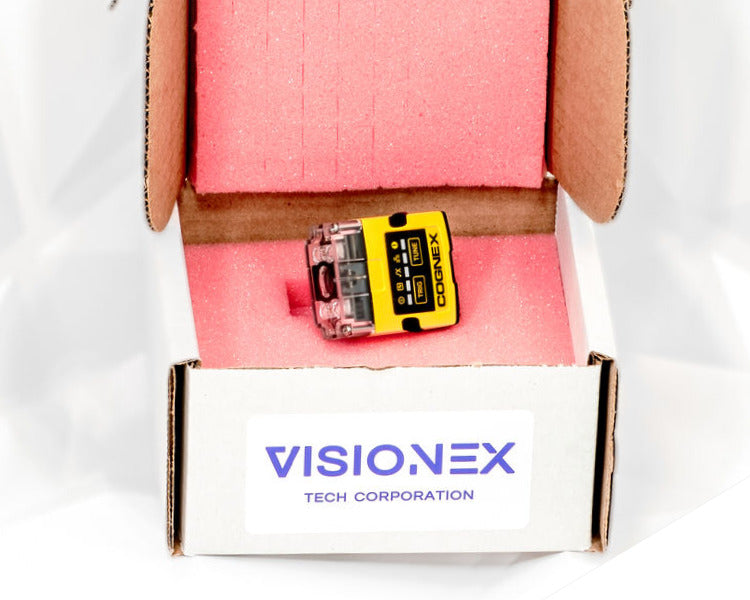

This barcode reader was installed in a machine vision system briefly and is working perfectly. We've tested it with Cognex software and loaded the latest firmware. It passes all functionality and heat tests to new device standards.
The DM262X model has the following features enabled:
(REPLACES DMR-262X-0120)
DataMan 262X with PowerGrid, 1-D and 2-D Code Reader, 1280x960 Resolution
--2DMax and PowerGrid algorithm for decoding of 2-D codes on printed labels and DPM, along with 2D codes with damaged Finder Patterns, Clocking Patterns, and Quiet Zone Violation
--1DMax with HotBars II for 1-D Linear and Stacked BarCodes
--Up to 45 Decodes per Second
--Integrated Red LED with aimer
--Ethernet and RS232 Communications
*See our other listings for other accessory options*
We have other models of the DM260 Series in stock, some aren't listed in our store. Let us know what model, options and accessories we can help you with.
Usually in stock: 260 and 262 with feature sets: S, Q, QL, X
We can help you install and configure after purchase if you like.
Comes with a 1 year warranty from Visionex Tech Corporation.
Option & part numbers

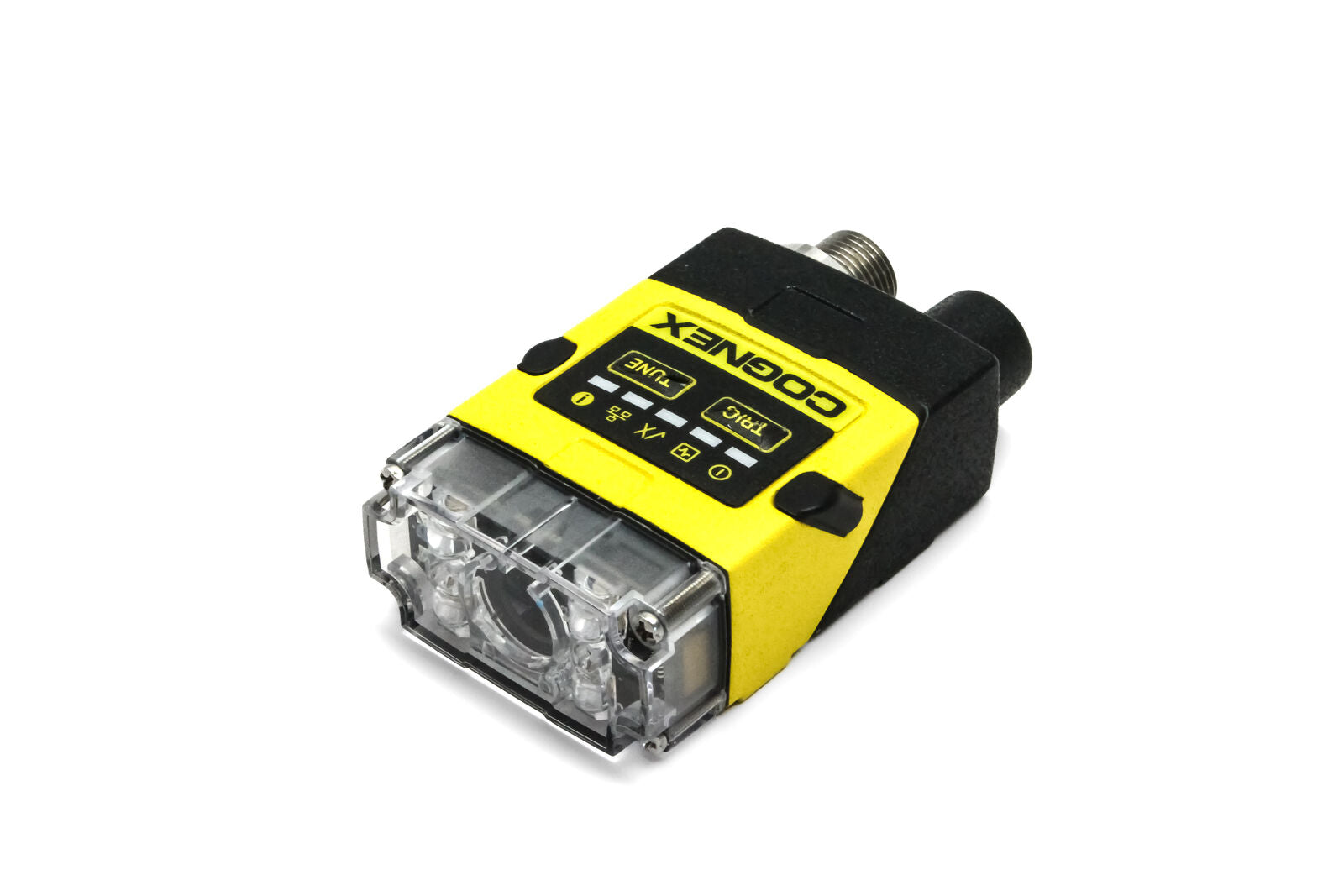

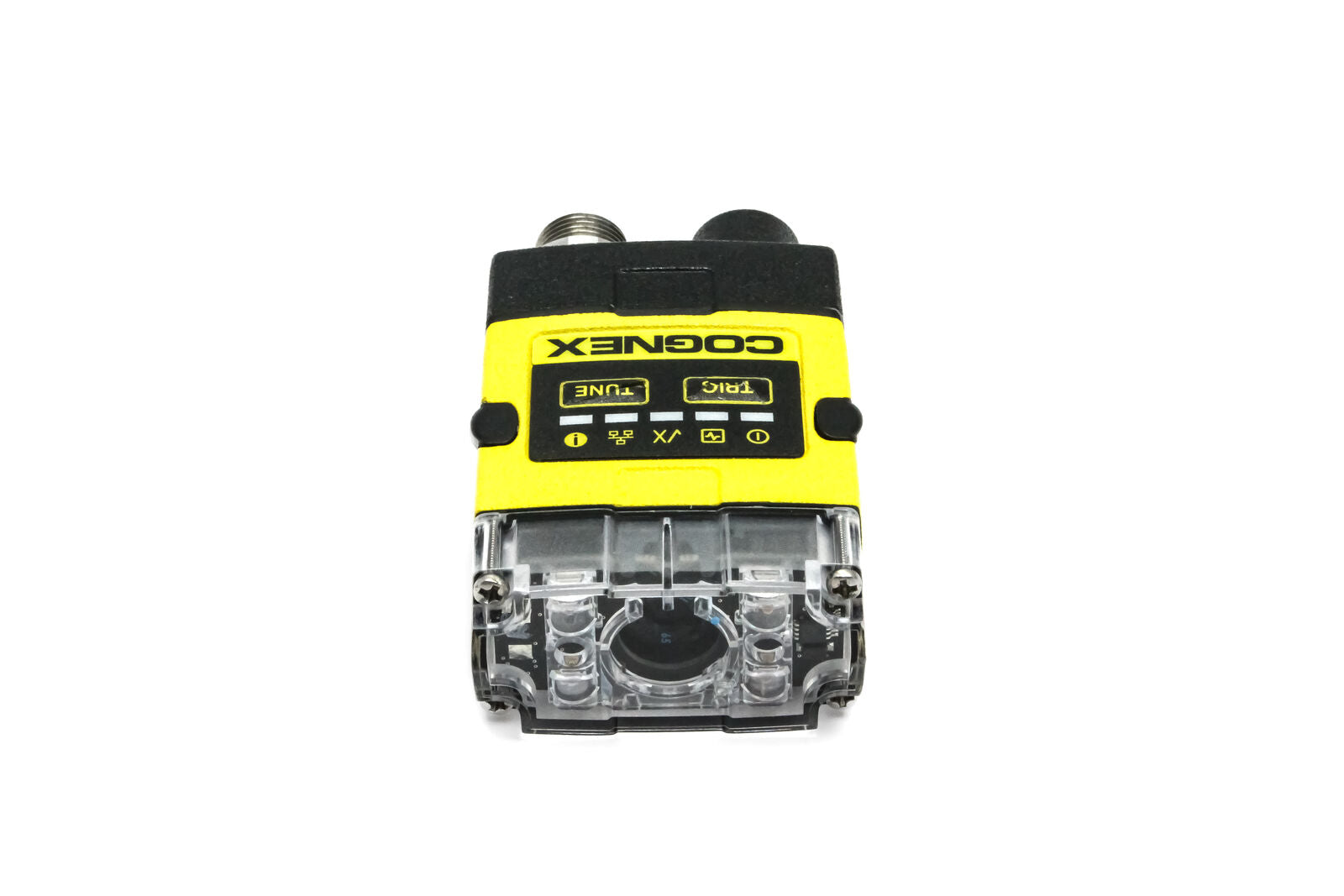

This model has the following part numbers. This listing is for the reader configured as pictured-- with 6.2mm liquid lens, integrated LEDs, powered by 24V I/O cable, in a straight (field adjustable to right angle config.)
If you prefer a different configuration we can customize this reader with any configuration or accessories you like.

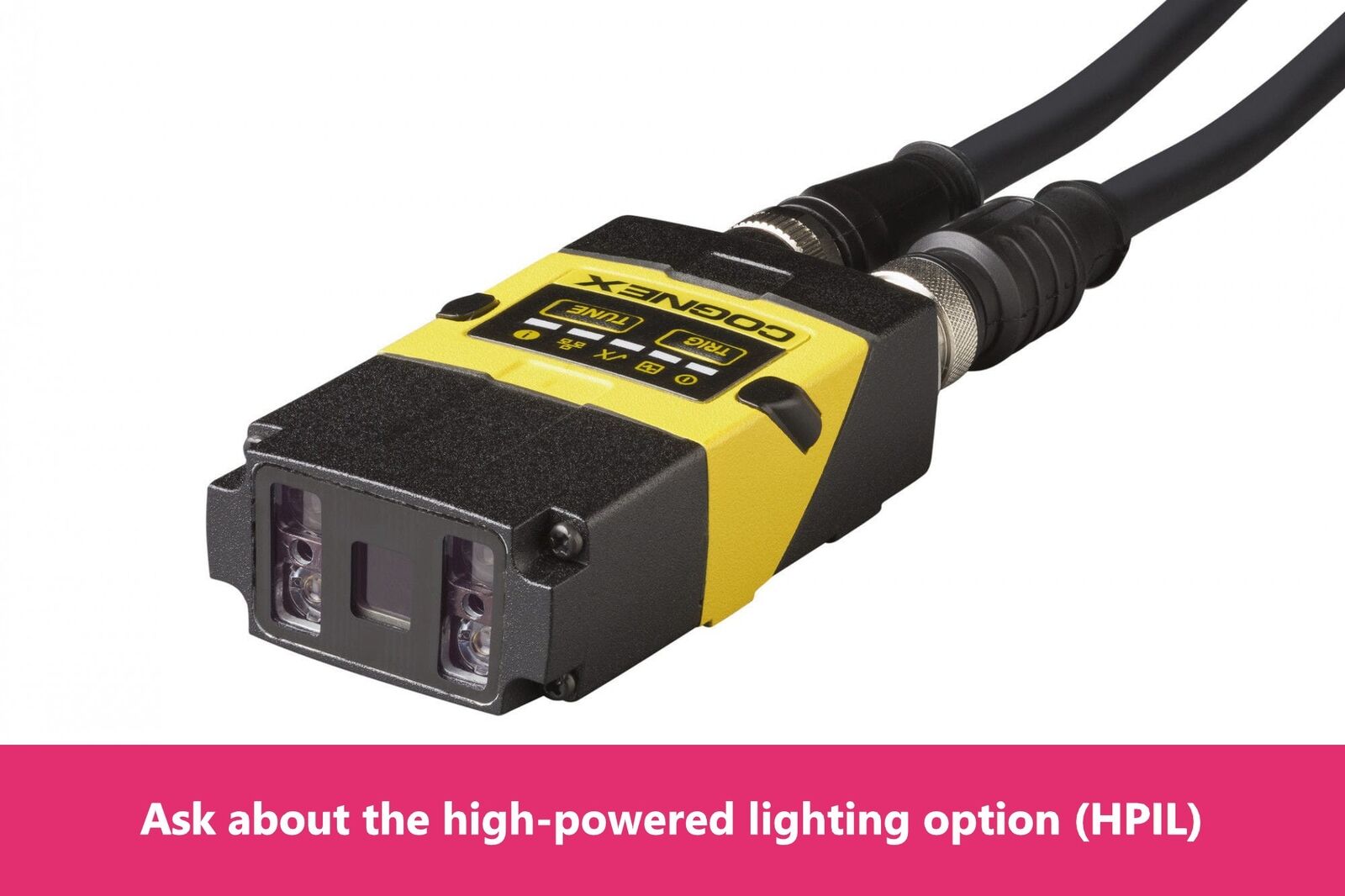

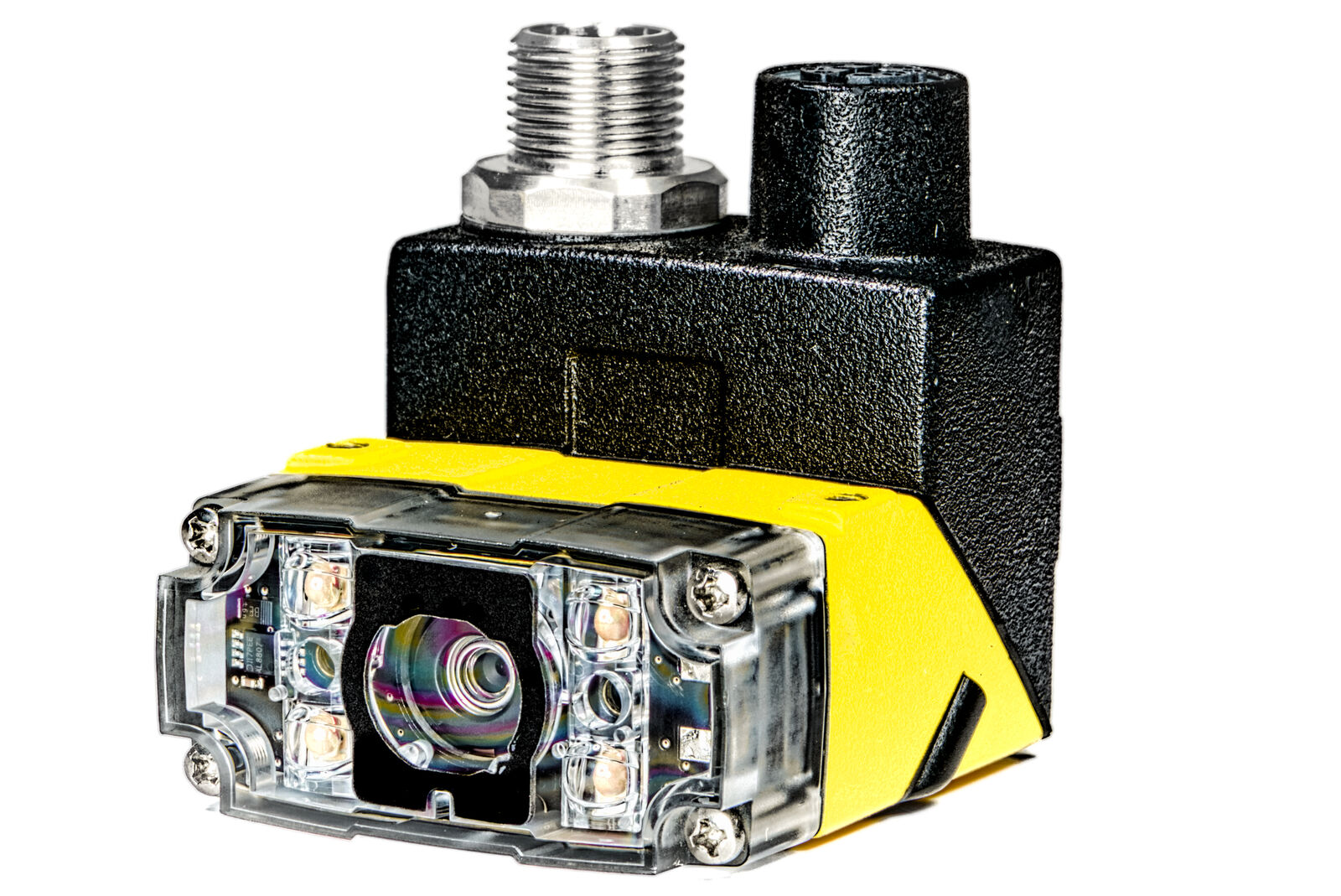

RDR= Reader POE= Power over Ethernet LN= Adjustable focus manual S-mount lens LL= Liquid Lens (autofocus, adjust with software) RA= Right Angle (can be changed this to the straight configuration easily with 2 screws) RD= Red HPRL= High Powered Red LEDs
| DMR-262X-1110 |
DM262X IDRDR/PG,6.2MM LN&RD LD |
| DMR-262X-1111 |
DM262X IDRDR/PG,6.2MM LN&RD RA |
| DMR-262X-1112 |
DM262X PG PoE RD/6.2MM LN&RD L |
| DMR-262X-1120 |
DM262X IDRDR/PG,6.2MM LL&RD LD |
| DMR-262X-1120-F |
DM262X RDR PG,6.2MM LL POL |
| DMR-262X-1121 |
DATAMAN 262X RDR W/PG 6.2LL RA |
| DMR-262X-1122 |
DM262X PG PoE RDR 6.2 LL&RD LD |
| DMR-262X-1530-P |
DM262X RDR PG, 16MM HP 1/2 POL |
| DMR-262X-1540 |
DM262X RDR PG,16MM LL&HP RD LD |
| DMR-262X-1540-P |
DM262X with PG, 16mm LLM, HPIL and 1/2 PolCov |
| DMR-262X-1542-P |
DM262X POE PG 16 LL,HPIL 1/2 P |
| DMR-262X-DEMO |
DMD262X ASP DEMO |
| DMR-262X-MAX |
DM262X with PG, 16mm LLM, HPIL and 1/2 PolCov |
| DMR-262X-UHD-01 |
DM262UHD |
