Cognex DM262X Dataman Barcode Reader - 1 Yr Warranty! Experience high precision with the DM262X, featuring 1-D & 2-D code reading at up to 45 decodes/sec, and a 1280x960 resolution. This model supports PowerGrid algorithm, 1DMax with HotBars II technology, and an adjustable 6.2mm focus lens. Connect effortlessly with Ethernet and RS232 communications. Passed all functionality and heat tests. Available in various configurations. Let us help you find the perfect setup! Contact us for more options. **Price: $719.55**. #BarcodeReader #Cognex #Dataman #DM262X #HighPrecision #MachineVision #1D2DCodeReader #IndustrialAutomation #TechEquipment
About this readerThe DM262X is sold by Cognex with many different options of configurations and accessories. Some of the variations are in the listing drop down menus but we can offer any option you'd like.*Get in touch if you don't see the options you're looking for*This barcode reader was installed in a machine vision system briefly and is working perfectly. We've tested it with Cognex software and loaded the latest firmware. It passes all functionality and heat tests to new device standards. The DM262X model has the following features enabled:(REPLACES DMR-262X-0120)DataMan 262X with PowerGrid, 1-D and 2-D Code Reader, 1280x960 Resolution--2DMax and PowerGrid algorithm for decoding of 2-D codes on printed labels and DPM, along with 2D codes with damaged Finder Patterns, Clocking Patterns, and Quiet Zone Violation--1DMax with HotBars II for 1-D Linear and Stacked BarCodes--Up to 45 Decodes per Second--Integrated Red LED with aimer--6.2mm adjustable focus lens *See listing options to add the Liquid Lens Module, AutoFocus 50mm - 200mm*--Ethernet and RS232 CommunicationsWe have other models of the DM260 Series in stock, some aren't listed in our store. Let us know what model, options and accessories we can help you with.Usually in stock: 260 and 262 with feature sets: S, Q, QL, XWe can help you install and configure after purchase if you like.Comes with a 1 year warranty from Visionex Tech Corporation.Option & part numbersThis model has the following part numbers. This listing is for the reader configured as pictured-- with 6.2mm liquid lens, integrated LEDs, powered by 24V I/O cable, in a straight (field adjustable to right angle config.)If you prefer a different configuration we can customize this reader with any configuration or accessories you like.RDR= Reader POE= Power over Ethernet LN= Adjustable focus manual S-mount lens LL= Liquid Lens (autofocus, adjust with software) RA= Right Angle (can be changed this to the straight configuration easily with 2 screws) RD= Red HPRL= High Powered Red LEDsDMR-262X-1110DM262X IDRDR/PG,6.2MM LN&RD LDDMR-262X-1111DM262X IDRDR/PG,6.2MM LN&RD RADMR-262X-1112DM262X PG PoE RD/6.2MM LN&RD LDMR-262X-1120DM262X IDRDR/PG,6.2MM LL&RD LDDMR-262X-1120-FDM262X RDR PG,6.2MM LL POLDMR-262X-1121DATAMAN 262X RDR W/PG 6.2LL RADMR-262X-1122DM262X PG PoE RDR 6.2 LL&RD LDDMR-262X-1530-PDM262X RDR PG, 16MM HP 1/2 POLDMR-262X-1540DM262X RDR PG,16MM LL&HP RD LDDMR-262X-1540-PDM262X with PG, 16mm LLM, HPIL and 1/2 PolCovDMR-262X-1542-PDM262X POE PG 16 LL,HPIL 1/2 PDMR-262X-DEMODMD262X ASP DEMODMR-262X-MAXDM262X with PG, 16mm LLM, HPIL and 1/2 PolCovDMR-262X-UHD-01DM262UHD
About this reader
The DM262X is sold by Cognex with many different options of configurations and accessories. Some of the variations are in the listing drop down menus but we can offer any option you'd like.
*Get in touch if you don't see the options you're looking for*
This barcode reader was installed in a machine vision system briefly and is working perfectly. We've tested it with Cognex software and loaded the latest firmware. It passes all functionality and heat tests to new device standards.
The DM262X model has the following features enabled:
(REPLACES DMR-262X-0120)
DataMan 262X with PowerGrid, 1-D and 2-D Code Reader, 1280x960 Resolution
--2DMax and PowerGrid algorithm for decoding of 2-D codes on printed labels and DPM, along with 2D codes with damaged Finder Patterns, Clocking Patterns, and Quiet Zone Violation
--1DMax with HotBars II for 1-D Linear and Stacked BarCodes
--Up to 45 Decodes per Second
--Integrated Red LED with aimer
--16mm adjustable focus lens *See listing options to add the Liquid Lens Module, AutoFocus 50mm - 200mm*
--Ethernet and RS232 Communications
We have other models of the DM260 Series in stock, some aren't listed in our store. Let us know what model, options and accessories we can help you with.
Usually in stock: 260 and 262 with feature sets: S, Q, QL, X
We can help you install and configure after purchase if you like.
Comes with a 1 year warranty from Visionex Tech Corporation.
Option & part numbers

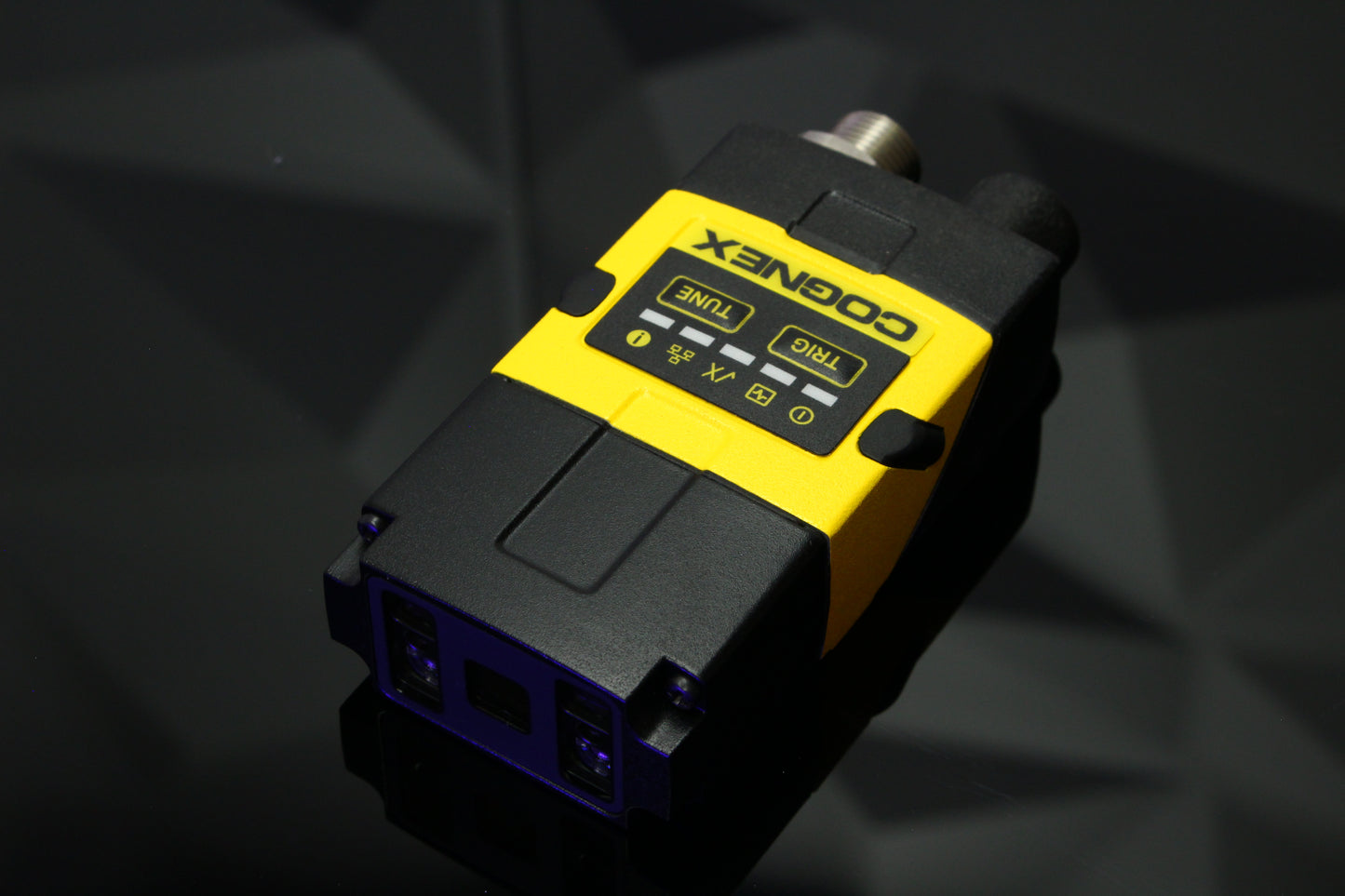

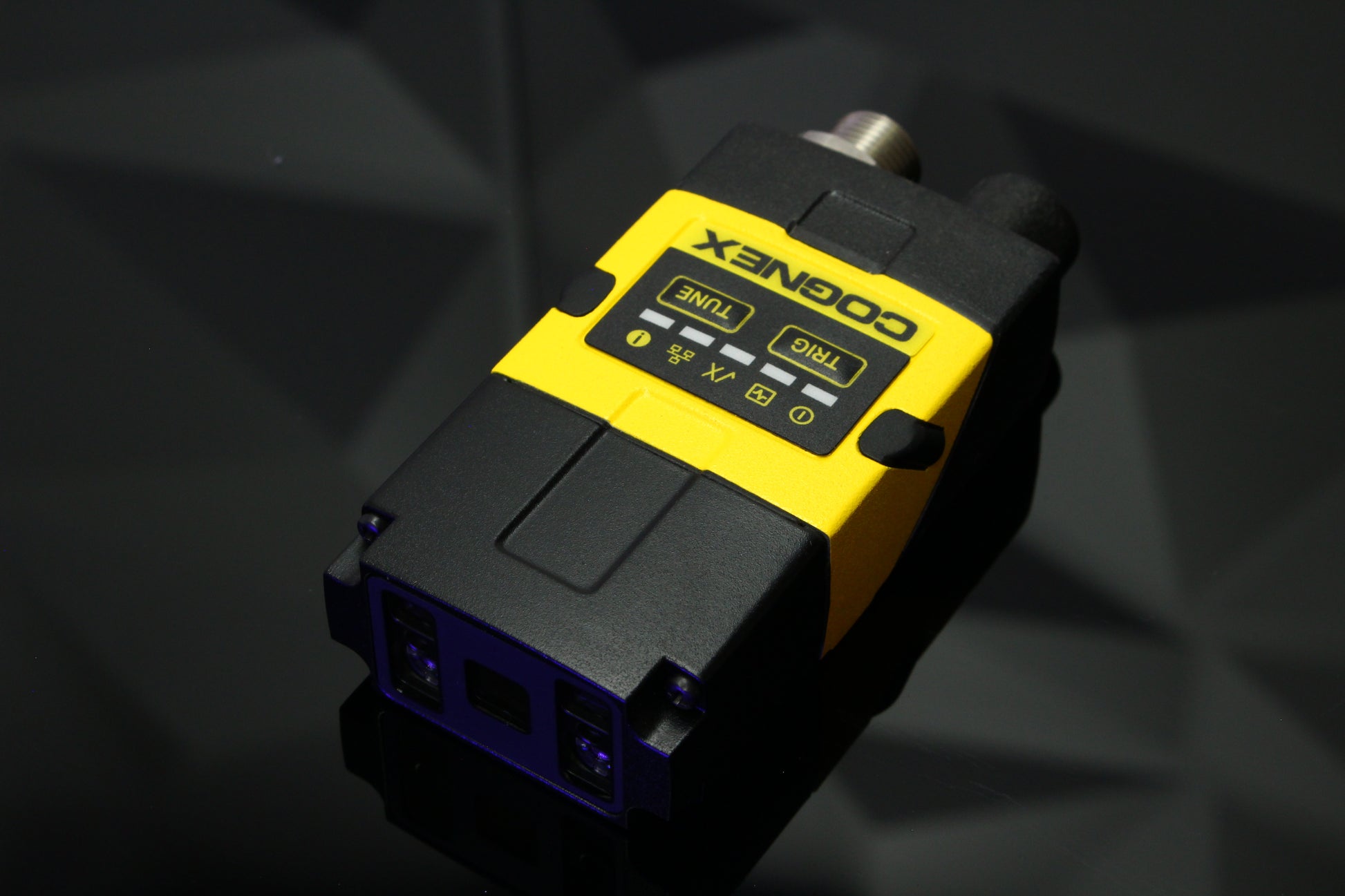

This model has the following part numbers. This listing is for the reader configured as pictured-- with 6.2mm liquid lens, integrated LEDs, powered by 24V I/O cable, in a straight (field adjustable to right angle config.)
If you prefer a different configuration we can customize this reader with any configuration or accessories you like.
RDR= Reader POE= Power over Ethernet LN= Adjustable focus manual S-mount lens LL= Liquid Lens (autofocus, adjust with software) RA= Right Angle (can be changed this to the straight configuration easily with 2 screws) RD= Red HPRL= High Powered Red LEDs
| DMR-262X-1110 |
DM262X IDRDR/PG,6.2MM LN&RD LD |
| DMR-262X-1111 |
DM262X IDRDR/PG,6.2MM LN&RD RA |
| DMR-262X-1112 |
DM262X PG PoE RD/6.2MM LN&RD L |
| DMR-262X-1120 |
DM262X IDRDR/PG,6.2MM LL&RD LD |
| DMR-262X-1120-F |
DM262X RDR PG,6.2MM LL POL |
| DMR-262X-1121 |
DATAMAN 262X RDR W/PG 6.2LL RA |
| DMR-262X-1122 |
DM262X PG PoE RDR 6.2 LL&RD LD |
| DMR-262X-1530-P |
DM262X RDR PG, 16MM HP 1/2 POL |
| DMR-262X-1540 |
DM262X RDR PG,16MM LL&HP RD LD |
| DMR-262X-1540-P |
DM262X with PG, 16mm LLM, HPIL and 1/2 PolCov |
| DMR-262X-1542-P |
DM262X POE PG 16 LL,HPIL 1/2 P |
| DMR-262X-DEMO |
DMD262X ASP DEMO |
| DMR-262X-MAX |
DM262X with PG, 16mm LLM, HPIL and 1/2 PolCov |
| DMR-262X-UHD-01 |
DM262UHD |
