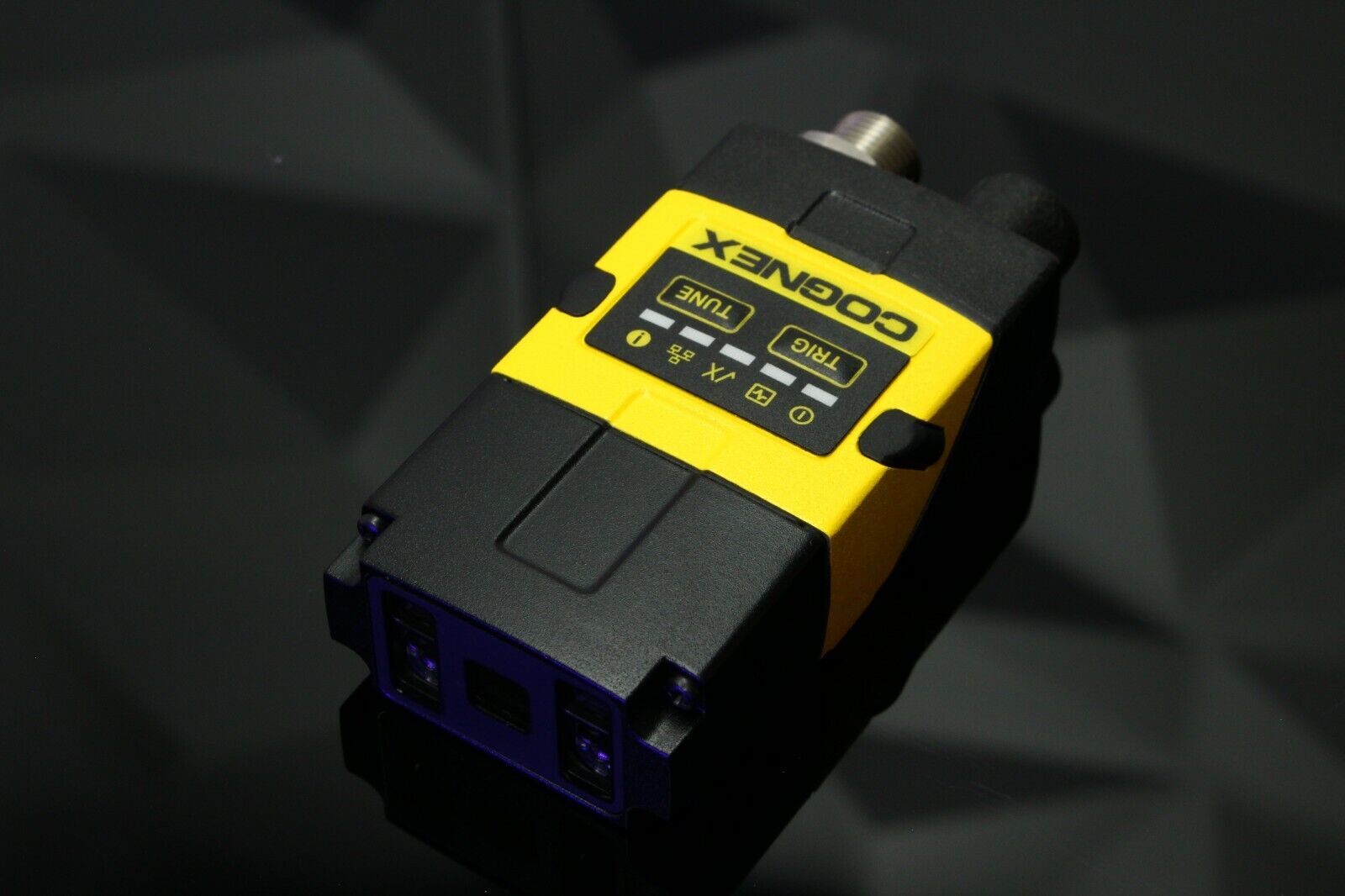

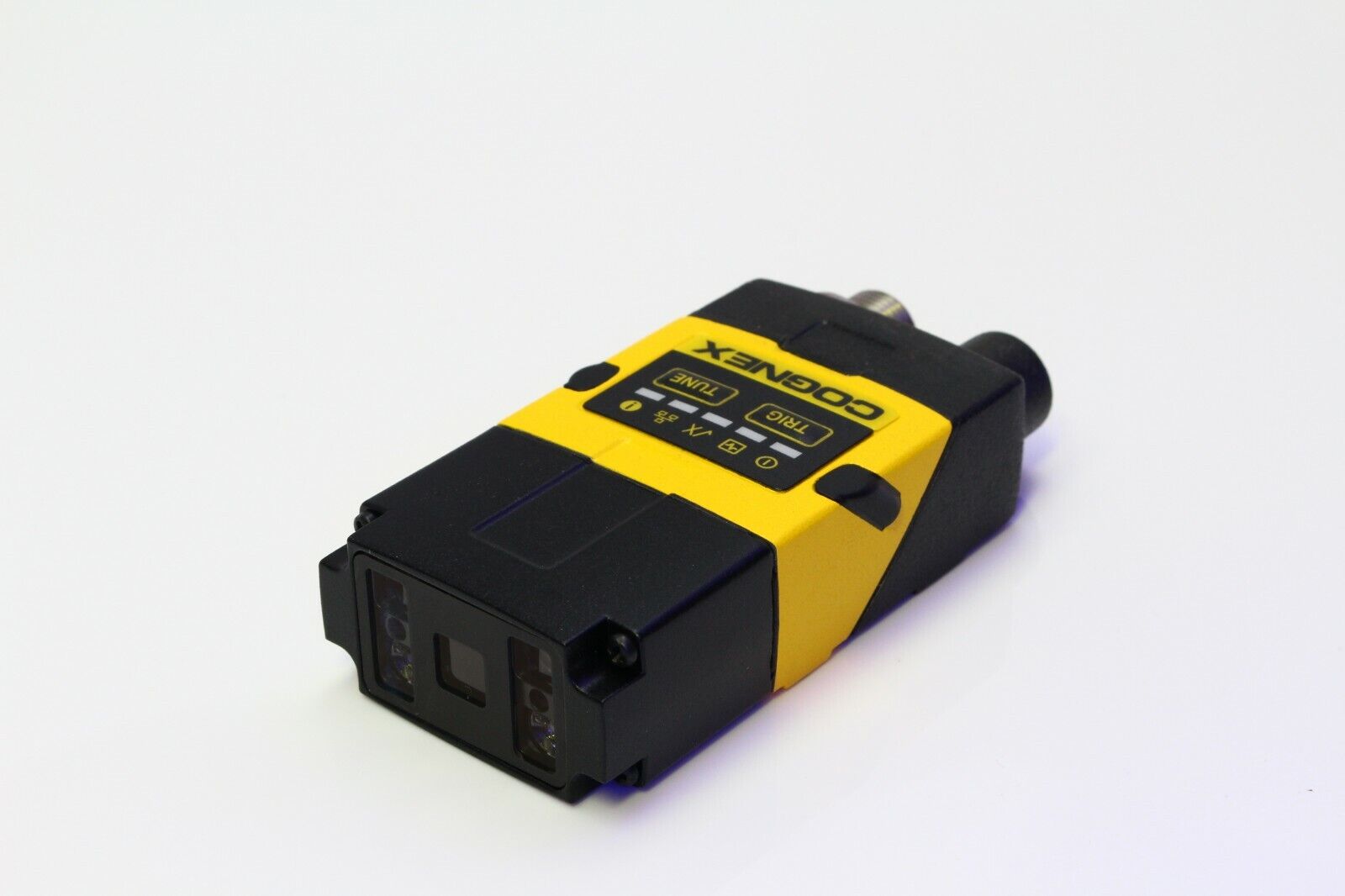

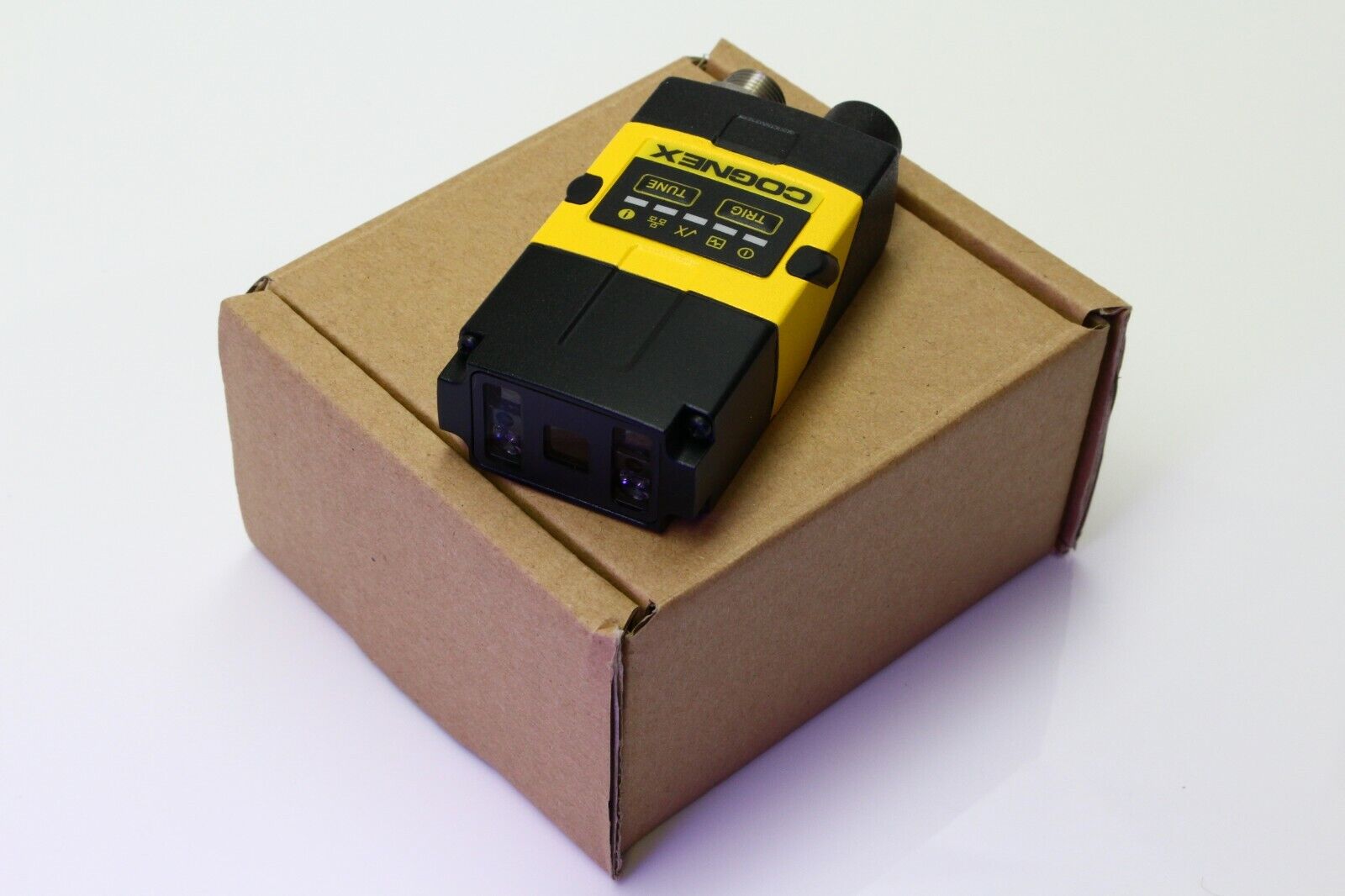

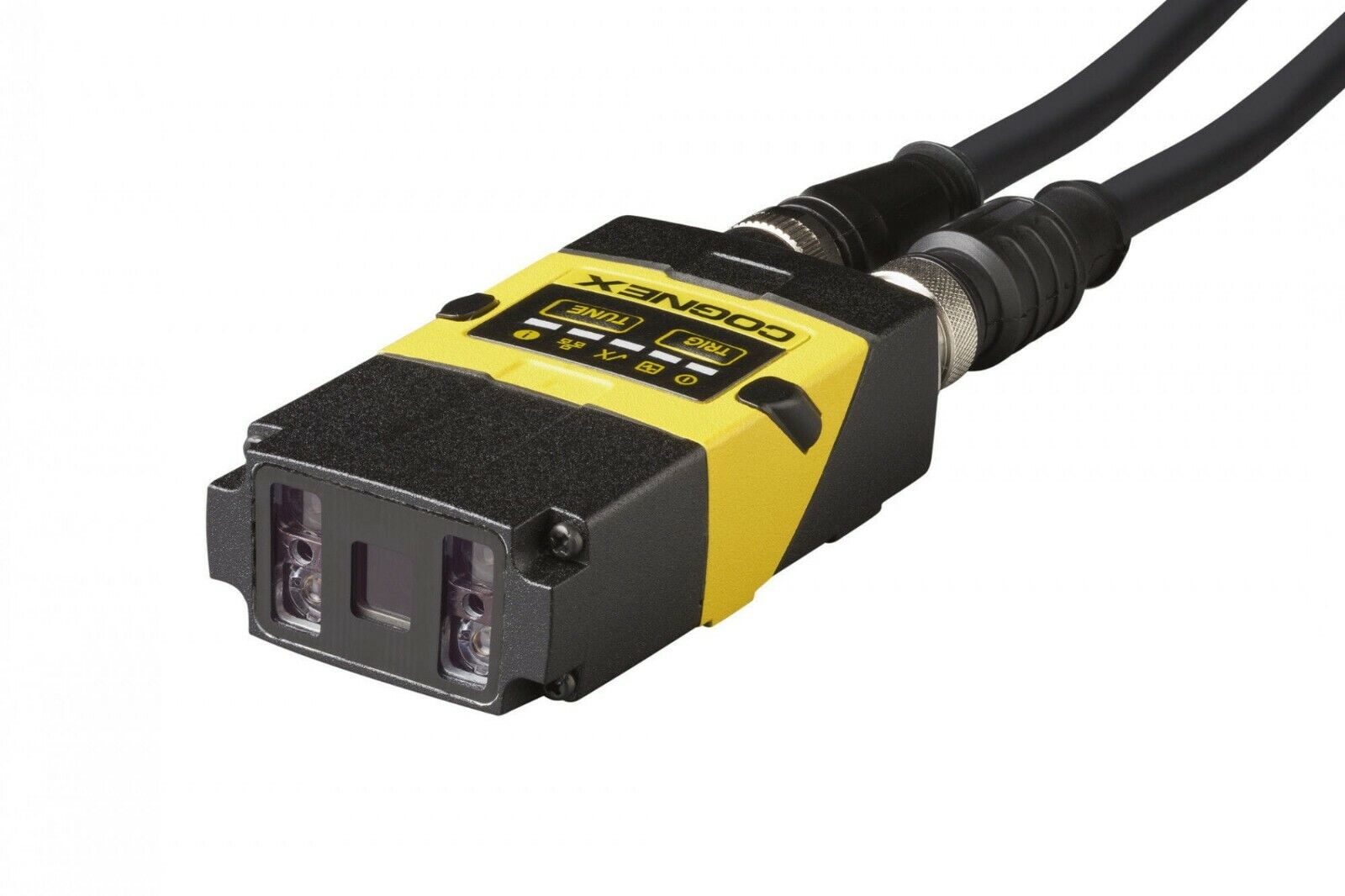

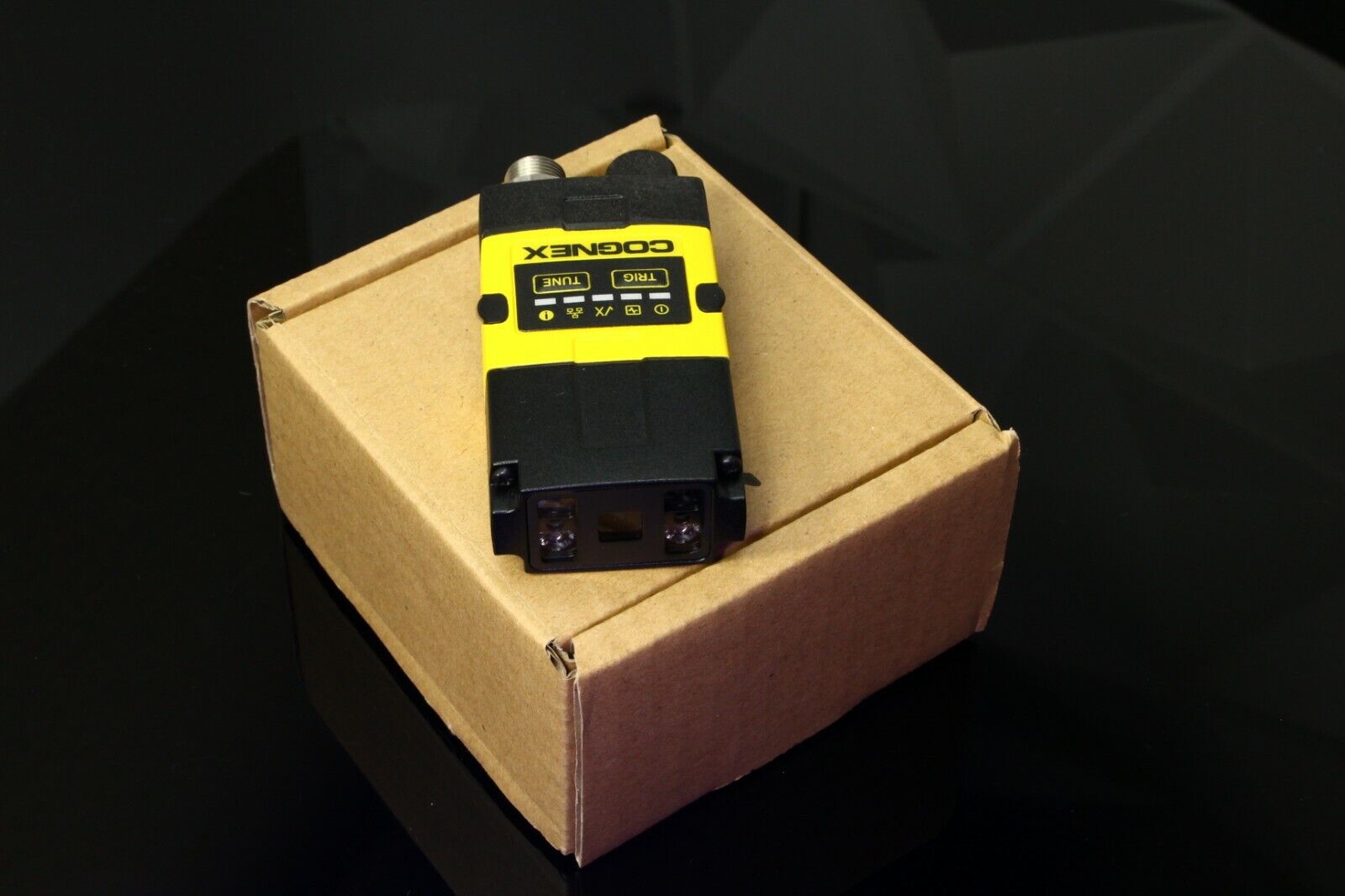

Discover the cutting-edge Cognex DM262X barcode reader, equipped with high-powered integrated red illumination and a versatile 16mm liquid lens. This premium 24V power device offers exceptional performance, enabling rapid decoding of 1-D and 2-D codes at up to 45 decodes per second. With a robust resolution of 1280x960 and advanced algorithms like 2DMax and 1DMax, it efficiently handles damaged codes and complex patterns. Adaptable design allows quick orientation changes from straight to right angle. Perfect for machine vision systems, this tested and certified reader is your ideal solution for reliable barcode scanning. Enhance your automation today!
The DM262X is sold by Cognex with many different options of configurations and accessories. This listing is for this reader with 24 volt power, red integrated high powered illumination, and a 16mm lens with liquid lens focus. The orientation of the reader can be field modified to be in straight or right angle position.
*Get in touch if you don't see the options you're looking for*
This barcode reader was installed in a machine vision system briefly and is working perfectly. We've tested it with Cognex software and loaded the latest firmware. It passes all functionality and heat tests to new device standards.
The DM262X model has the following features enabled:
DataMan 262X with PowerGrid, 1-D and 2-D Code Reader, 1280x960 Resolution
--2DMax and PowerGrid algorithm for decoding of 2-D codes on printed labels and DPM, along with 2D codes with damaged Finder Patterns, Clocking Patterns, and Quiet Zone Violation
--1DMax with HotBars II for 1-D Linear and Stacked BarCodes
--Up to 45 Decodes per Second
--Integrated Red LED with aimer
--Ethernet and RS232 Communications
*See our other listings for additional accessory and feature options*
